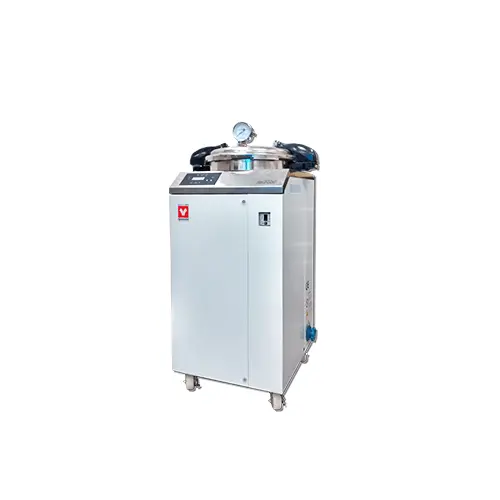

Yamato SK200C/210C/300C/310C Sterilizers
Key Features
- Operating Temperature: 50° to 126°C
- Maximum Operational Pressure: 0.142 MPa
- Space-saving size – 24/30 Liters
- Mobile on wheels
- Powerful 1500W pipe heater
- Easy to read 4 digit LED display
- Three way drain valve eliminates air at the bottom of chamber during operation, and drains waste water after operation
- Programmable sterilizing and temperature functions
- Timer setting range 0 to 999 min
- Water level detection sensor with alarm
- Overheat protection sensor
- Lid closure sensor (inter lock)
- Pressure lamp indicator
- New improved silicon lid gasket
Increased Safety Features
- Water level detection sensor with alarm
- Overheat Protection
- Sensor Lid closure sensor (Inter lock)
- Pressure Lamp Indicator
- New improved silicon lid gasket and easy to replace
Applications
Steam Sterilizers
Steam sterilization is the most widely used and most dependable method in industries, from pharmaceutical to food production. It is inexpensive, non-toxic, and highly effective in killing microorganisms and fungal spores. Furthermore, steam can penetrate fabrics easily. Our steam sterilizers can help you disinfect lab, medical, or dental equipment.
Steam Sterilizable Respiratory Therapy EquipmentSterilizers used in hospitals are highly important as these keep the risk for contamination at bay especially respiratory therapy equipment, which are considered as semi-critical items because of their frequent contact with non-intact skin and mucous membranes. Therefore, these should be cleaned and disinfected. While chemical germicides such as stabilized 6% hydrogen peroxide and 2% glutaraldehyde-based formulations are essential in disinfecting equipment, physical methods of disinfection like pasteurization and steam sterilization are ideal for disinfecting equipment. Yamato’s Lab Steam Sterilizers & Autoclaves are not only compact and space-saving, but they are also great for disinfecting tubing of mechanical ventilators for example.
Small Medical Instruments
It is also crucial to keep small instruments such as syringes, needles, cannulas, and even forceps as sterile as possible. With the use of autoclaves, you can effectively ensure the destruction of all microorganisms through the application of heat and pressure on equipment. However, you must make sure that these are non-plastic as temperatures could potentially reach up to 135 °C.Dental Instruments
Reusable dental instruments including those for cleaning, disinfecting, rinsing, drying, inspecting, wrapping, and sterilizing should be decontaminated as these are exposed to biological fluids like saliva and blood, which may potentially pose a health risk for the next subsequent patient when left unsterile. That is why steam sterilizers are highly recommended because these are efficient, cost-effective, and incredibly safe for sterilizing instruments in primary care dental practices. Accordingly, instruments should be exposed to temperatures between 134 °C-137 °C and a 2.1-2.25 bar gauge pressure for a holding time of 3 minutes to ensure effectiveness.Lab research equipment
Yamato steam sterilizers are suitable for lab applications in many industries such as pharmaceutical, life science, food safety, and water based lubricant and coolant industries. For these research laboratories, Yamato autoclaves can disinfect liquid samples as well as solid apparatus. With liquid samples, effective sterilization depends on achieving specific temperature, which requires variation on sterilization time. As an alternative, Yamato offers an optional sample temperature sensor inserted into the samples to ensure required temperature is reached eliminating sterilization time adjustment. This option is available for SN and SQ Series as well as SM Series Large Capacity Steam Sterilizers. Yamato dry sterilizers are suitable for research as these are durable and non-corrosive. Therefore, you can sterilize samples without damaging moisture-sensitive materials including fat, oils, and powders. Furthermore, dry heat sterilizers like the Natural Convection Dry Sterilizers by Yamato are guaranteed toxic-free.| Model | SK101C SK111C |
SK200C
SK210C
|
SK300C
SK310C
|
|---|---|---|---|
| System | Automatic high pressure steam sterilizer | ||
| Temp. setting range | 50 to 126°C | ||
| Max. operational pressure | 0.142MPa (at 126°C) | ||
| Interior Material | Stainless steel SUS 304 | ||
| Heater | 1500W SUS Heating Pipe | ||
| Temp. controller | PlD control by microprocessor | ||
| Temp. setting method | Digital setting by up/down keys | ||
| Temp display method | Digital display by green LED | ||
| Timer | 0 min. to 999 min. | ||
| Safety Device | Pressure safety valve, Low water sensor, Dual exterior walls, Built in Inter-lock sensor | ||
| Internal dimensions | 280 x D275 mm | 280 x D360 mm | 280 x D440 mm |
| External dimensions | 343 x D550 mm | W353 x D386 x H737 mm | W353 x D386 x H827 mm |
| Internal capacity | 18L | 24L | 30L |
| Power source 50/60Hz |
AC115V (with plug)
AC220V (no plug)
|
AC115V (with plug) AC220V (no plug) |
AC115V (with plug) AC220V (no plug) |
| Weight | ~17.5Kg | ~26.5Kg | ~31.5Kg |
| Included accessories | 1 stainless steel mesh basket (254mm x 240mm) and stainless steel bottom plate | 1 stainless steel mesh basket (254mmx 331mm), 1 pc. stackable plate and stainless steel bottom plate |
1 stainless steel mesh basket (254mmx 409mm), 1 pc. stackable plate and stainless steel bottom plate |
| Item | Capacity | Power- 50/60 Hz | Temp. Range | Unit of Measure | Price | Purchase | |
|---|---|---|---|---|---|---|---|
|
EF29318
SK-210C
|
24L | 220V, 9A no plug, round terminal | 50° to 126°C | Each |
$2,904.95
|
