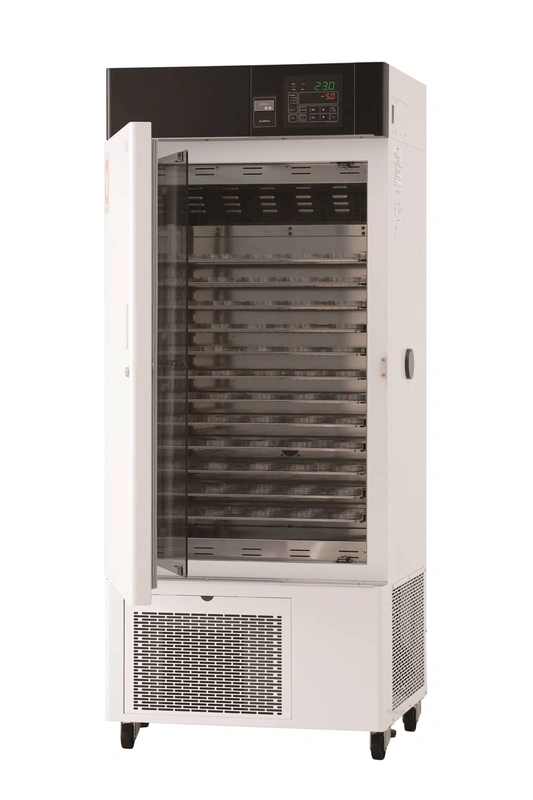

Yamato INE-Series Incubator
Programmable refrigerated forced convection eco incubator
Key Features
- Temperature Range: 0° to +60°C
- Upgraded inverter control improved refrigeration efficiency, reduced frost significantly, and minimized wasted power during refrigeration
- 44% power savings compared to previous models
- Controller upgraded for easier viewing and operability
- Temperature distribution accuracy improved for better incubation
- Standard equipped with program operation, auto-stop, auto-start, self-diagnostic, timer, calibration off-set, memory, and electricity & CO2 emission monitor
- Designed with Analog Output (4-20mA) and External communication port (RS485)
| Model | INE800 |
|---|---|
| System | Forced convection |
| Operating temperature range | 0~+60°C |
| Setting temperature range | -5~+65°C |
| Temperature adjustment accuracy | ±0.2°C (at 37°C during continuous operation), ±0.5°C (at 37°C cycle operation) |
| Temperature fluctuation | ±0.3°C (at 37°C during continuous operation), ±1.0°C (at 37°C cycle operation) |
| Temp. distribution accuracy | ±0.5°C (at 37°C during continuous operation) |
| Temperature gradient | 2.0°C (at 37°C during continuous operation) |
| Max. temperature reaching time | 20~60°C 35min. |
| Min. temperature reaching time | 20~0°C 50min. |
| Cooling Mechanism | Continuous operation, Cycle operation, Cooling-stop operation |
| Interior | Stainless steel |
| Exterior | Chromate-free electrogalvanized steel plate Baked chemical resistant finish |
| Heat insulator | Styrene foam (non-freon) |
| Freezer | 200W Rotary Unit |
| Cooling Medium | R134a 350g |
| Operation range of freezer | Below 40°C |
| Defrosting mechanism | Hot Gas Bypass Method, Manual (random) Defrost / Auto (time) Defrost |
| Blower fan | DC Axial flow fan 4-Step, Equipped with Error Signal when stopped |
| Heater | Iron-chrome wire heater : 750W |
| Sensor | Double sensor: Platinum resistance temperature detector: Pt100O (temperature controller), |
| Cable port | I.D.: 50 mm (right side of main unit) |
| Temperature controller | PID control by microprocessor |
| Temperature Display | Setting Temp. Display : 5-digit orange LED digital display / |
| Actual Temp. Display : 4-digit green LED digital display | |
| Timer / timer resolution | 0~99hr. 59min. / 1min. |
| Operation function | Fixed temperature, Auto start, Auto stop, Quick auto stop, Program (99 steps, 99 patterns) |
| Additional functions | Timer, Calibration off-set, Electricity & CO2 Emission Monitor, Voltage Recovery Optional, |
| Safety device | Self diagnostic function (temp. sensor error, heater disconnection, SSR short-circuit, main relay |
| External WxDxH | 710 x 645 x 1730 mm |
| Internal WxDxH | 600 x 477 x 1000 (effective 800) mm |
| Internal capacity | 286L |
| Shelf load capacity | 15 kg/pc. |
| Shelf rest step number / pitch | 23 steps / 30mm |
| Power supply (50/60 Hz) | AC115V 8.7A (with plug) AC220V 4.5A (no plug, round terminal) |
| Weight | ~135kg |
| Included accessories | Stainless steel punched metal 5 pcs. shelf / 10 pcs. brackets, 2 keys, silicon stopper for cable hole 1 pc |
| User Setting saving/readout, Calendar timer (24 hours) |
| K-thermocouple (overheat prevention device) |
| error, automatic overheat prevention), Key lock, Overcurrent electric leakage breaker, |
| Inverter malfunction detector |
| Item | Capacity | Temp. Range | Unit of Measure | Price | Purchase | |
|---|---|---|---|---|---|---|
|
EF29373
INE-800
|
286L | 0° to 60°C | Each |
$11,106.95
|
