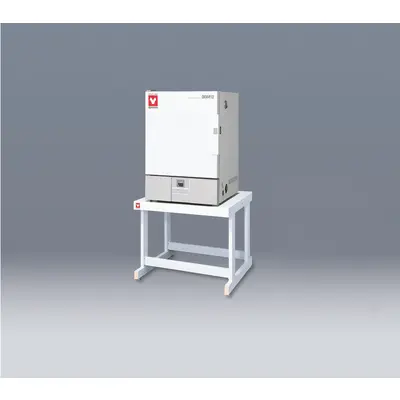

Yamato DKM-Series Forced Convection Ovens
Standard forced convection constant temperature ovens with simple operation functions
Performance and functions
- Fixed temperature, Quick Auto stop, Auto stop, and Auto start operating modes with easy control capabilities
- Settings can be made digitally with the dedicated operation menu keys or the ▲/▼ keys
- Auto recovery after power failure, calibration off-set and key-lock are possible through the auxiliary functions
Safety features
- Self-diagnostic functions, Auto overheat prevention, Independent overheat prevention
| Model | DKM300C DKM310C |
DKM400C DKM410C |
DKM600C DKM610C |
|---|---|---|---|
| Circulation method | Forced air circulation | ||
| Operating temperature range | Room temp. +10~260°C | ||
| Temp. control accuracy | ±1°C (at 210°C) | ||
| Temp. distribution accuracy | ±2.5°C (at 210°C) | ||
| Max. temp. reaching time | ~90min (at room temp. +10°C~260°C) | ||
| Interior material | Stainless Steel | ||
| Exterior material | Cold rolled steel plate with melamine resin baking finish | ||
| Heat insulating material | Glass wool | ||
| Heater | SUS pipe heater / 0.8kW | SUS pipe heater / 1.2kW | SUS pipe heater / 1.34kW |
| Fan type / Motor | Scirocco fan / Condenser type motor 10W | ||
| Cable port | 30 mm l.D.×1 pc. (right side) | ||
| Exhaust port | 30 mm l.D.×2 pcs. (the top) | ||
| Temp. controller | PlD control by microprocessor | ||
| Temp. setting method | Operation menu key and digital setting by up/down key | ||
| Temp display method | Measurement temp. : Digital display by green LED / Setting temp. : Digital display by red LED | ||
| Timer | 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. (with time wait function) | ||
| Operation functions | Fixed temperature operation, Quick Auto-stop, Auto start, Auto stop | ||
| Additional functions | Calibration off-set function, Key lock, Uninterruptible power for memory | ||
| Heater circuit control | SSR control | ||
| Sensor | K-thermocouple | ||
| Safety device |
Self diagnostic functions (Sensor trouble detection, Memory error, Measured temperature lower limit error,
Measured temperature error), Auto overheat prevention, Independent overheat prevention.
|
||
| Internal dimensions W×D×H | 300×300×300mm | 450×450×450mm | 600×500×500mm |
| External dimensions W×D×H | 410×451×670mm | 560×601×820mm | 710×651×870mm |
| Internal capacity | 27L | 90L | 150L |
| Shelf plate with standard load | 15kg/piece | ||
| Shelf rest step number | 6 steps | 9 steps | 12 steps |
| Shelf rest pitch | 35mm | ||
| Power source 50/60Hz |
AC115V 7.5A (with plug)
AC220V(no plug)
|
AC115V 11A (with plug)
AC220V(no plug)
|
AC115V 12A (with plug)
AC220V(no plug)
|
| Weight | ~35kg | ~50kg | ~65kg |
| Included accessories | Shelf plate and brackets | ||
| Shelf plate / bracket | Stainless steel 2 pcs. / 4 pcs. |
||
| Item | Capacity | Power- 50/60 Hz | Temp. Range | Unit of Measure | Price | Purchase | |
|---|---|---|---|---|---|---|---|
|
YAMDKM-410C
DKM-410C
|
90L | 220V, 6.5A no plug, round terminal | Ambient +10°C to 260°C | Each |
$2,361.95
|
||
|
YAMDKM-400C
DKM-400C
|
90L | 115V with plug | Ambient +10°C to 260°C | Each |
$2,361.95
|
||
|
YAMDKM-600C
DKM-600C
|
150L | 115V, 12A with plug | Ambient +10°C to 260°C | Each |
$2,840.95
|
||
|
YAMDKM-310C
DKM-310C
|
27L | 220V, 4.5A no plug, round terminal | Ambient +10°C to 260°C | Each |
$2,011.95
|
||
|
YAMDKM-610C
DKM-610C
|
150L | 220V, 7A no plug, round terminal | Ambient +10°C to 260°C | Each |
$2,840.95
|
||
|
YAMDKM-300C
DKM-300C
|
27L | 115V, 7.5A with plug | Ambient +10°C to 260°C | Each |
$2,011.95
|
